Key Features

• Simple, step-by-step operation: Clear voice prompts, visual indicators and illuminated controls help guide the user through each stage of the rescue process.
• Adult and child capability: SMART electrode pads can be used for both adult and paediatric patients, with a simple adult/child mode selection.
• Automatic volume adjustment: The device detects ambient noise and adjusts the volume of its voice instructions to help ensure they remain audible.
• CPR guidance: Provides CPR guidance and an audible metronome to help support the rescuer during chest compressions.
• Automatic self-testing: The defibrillator performs regular automatic self-tests to help monitor its operational readiness.
• Clear status indication: The status display provides information about the device, battery and electrode pads.
• Rugged and portable: The compact design weighs approximately 2.4 kg including the battery and electrode pads.
• IP55 protection: Designed to provide protection against dust and water ingress and suitable for a range of workplace and public environments.
• Durable construction: Designed to withstand a drop of up to 1.2 metres.

Technical Specifications

• Device type: Semi-automatic external defibrillator (AED)
• Manufacturer: CU Medical
• Operating mode: Semi-automatic
• Defibrillation waveform: e-cube biphasic, truncated exponential
• Adult energy: 150 J / 200 J at 50 Ω load
• Paediatric energy: 50 J at 50 Ω load
• Dimensions: 260 x 256 x 69.5 mm
• Weight: Approximately 2.4 kg including battery and pads
• Protection rating: IP55
• Operating temperature: 0°C to 50°C
• Storage/transport temperature: -20°C to 60°C
• Battery: 12 V DC, 4.2 Ah LiMnO₂ disposable battery
• Battery capacity: At least 200 shocks or 8 hours of operating time at room temperature
• Battery standby life: Up to 5 years from manufacture when stored and maintained according to manufacturer instructions
• Electrode pads: Adult/paediatric SMART electrode pads
• Pad shelf life: At least 36 months from manufacture
• Data storage: Up to 5 individual treatments, with up to 3 hours of data per treatment
• Self-tests: Power-on, run-time, daily, weekly and monthly

What's Included

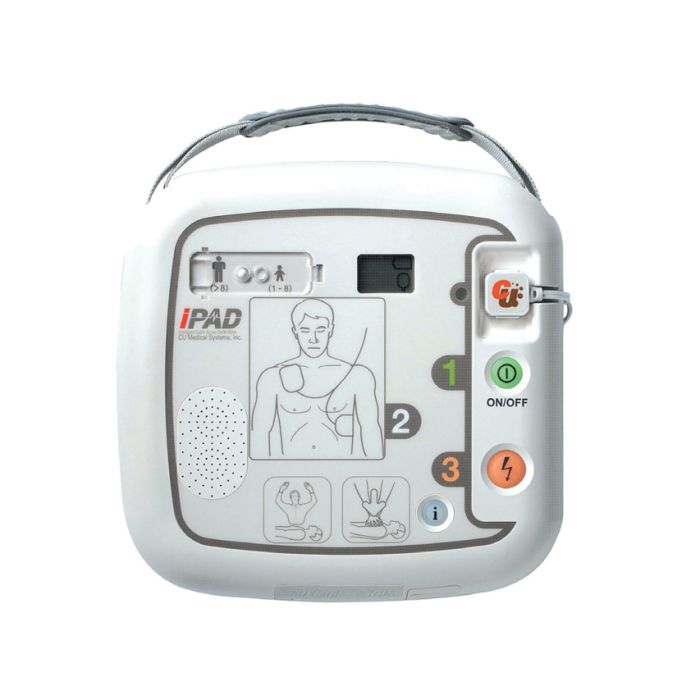

• i-PAD CU-SP1 Semi-Automatic Defibrillator
• Adult/Child SMART electrode pads
• Disposable lithium battery pack
• Carry case
• User manuals
• Multilingual CD manual

Suitable for a Range of Locations

The i-PAD CU-SP1 is suitable for organisations and facilities where rapid access to an AED is important, including:

• Workplaces and offices
• Schools and educational facilities
• Sports clubs and leisure centres
• Community centres
• Public-access locations
• Healthcare and care environments
• Industrial and commercial premises

Why Choose the i-PAD CU-SP1?

The i-PAD CU-SP1 combines simple operation, clear rescue instructions, adult and paediatric capability, automatic self-testing and a rugged, portable design. Its intuitive operation makes it a practical choice for workplaces, schools, sports facilities, community buildings and other environments where an AED may be required.

Important: An AED should be used in conjunction with emergency medical services and appropriate CPR/resuscitation procedures. Always follow the device's voice prompts and the manufacturer's instructions.
