A&D Medical

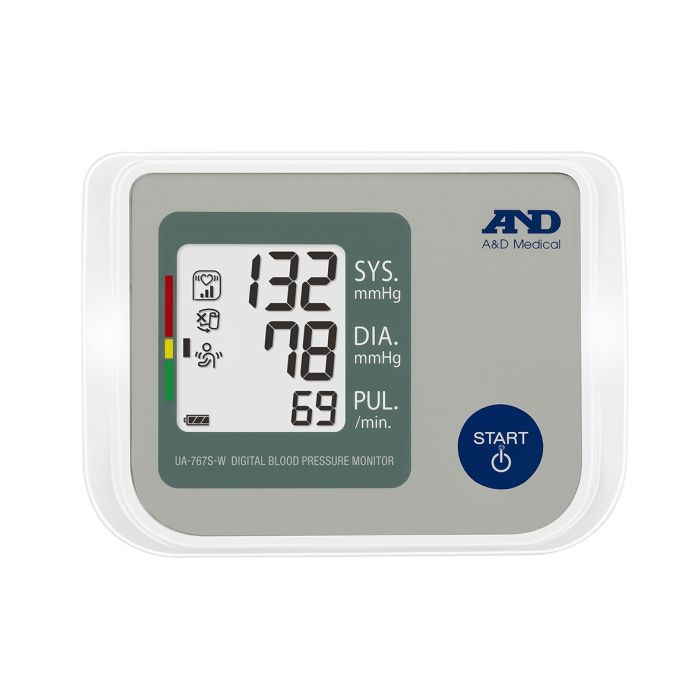

UA-767S-W Upper Arm Blood Pressure Monitor with Atrial Fibrillation Screening
Overview
- Successor of the UA-767 series for single user focused on "Simple operation".
- Latex-free wide range cuff (UA-767S-W : 22-42cm)
- %IHB Indicator to show frequency of Irregular Heartbeat
- Cuff Fit Error Indicator
- Movement Error Indicator
- WHO Blood Pressure Classification Indicator
- 60-memory + Average Reading
€84.00
SKU
UA-767S-W
Additional Information +
- Type: UA-767S-W
- Measurement method: Oscillometric measurement
- Measurement range:
- - Pressure: 0 - 299 mmHg
- - Systolic pressure: 60 - 279 mmHg
- - Diastolic pressure: 40 - 200 mmHg
- - Pulse: 40 - 180 beats / minute
- Measurement accuracy:
- - Pressure: ±3 mmHg
- - Pulse: ±5%
- Power supply: 4 x 1.5V batteries (R6P, LR6 or AA) or AC adapter (TB-233) (Not included)
- Number of measurements:
- - Approx. 700 times LR6 (alkaline batteries)
- - Approx. 200 times R6P (manganese batteries)
- - With pressure value 180 mmHg, room temperature 23 °C
- Classification Internally powered ME equipment (Supplied by batteries) / Class II (Supplied by adapter) Continuous operation mode
- Clinical test: According to ANSI / AAMI SP-10 1992 EMC IEC 60601-1-2: 2007
- Memory: Last 60 measurements
- Operating conditions: +10 to +40 °C / 15 to 85 %RH / 800 to 1060 hPa
- Transport / Storage conditions: -20°C to +60°C / 10%RH to 95%RH
- Dimensions Approx.: 140 [W] x 60 [H] x 105 [D] mm
- Weight Approx.: 245 g, excluding the batteries
- Ingress protection Device: IP21 English 21
- Applied part Cuff Type BF
- Useful life Device: 5 years (when used six times a day)
- Cuff: 2 years (when used six times a day)
Product Codes +
| SKU | UA-767S-W |
|---|---|
| Manufacturer | A&D Medical |
| Medicinal Product | No |
